The FOLIANT Taurus 760 NG 4x4 double is brand new double sided laminating machine offering very high performance. It is very compact and fast industrial laminating machine, constructed for non-stop work. It is equipped with a suction feeder, high speed bump separator and many options like pallet stacker or Foiler. Due to its format and performance the machine is suitable for all jobs – all kinds of digital printed sheets lamination and high volumes of offset printed sheets size B1+ lamination too. The machine maximum speed is up to 30 m per min in single side lamination and double sided lamination as well, while performance is up to 1800 sheets per hour of B1 portrait (white paper 200 gsm).
The FOLIANT Taurus 760 NG 4x4 is equipped with a rising pile back separation stream feeder and with a suction feed head. It is driven by an Omron servo motor and controlled by a machine central PLC. The Becker vacuum pump is used for sheets back airing. The overlaps are electronically controlled, in an „in-run“ automatic mode, from the touch screen. The accuracy is +/- 2 mm under-lap (in a constant speed). The standard feeder is fitted with a lifting plate and its capacity is a 40 cm pile of paper.
The FOLIANT Taurus 760 NG 4x4 laminator maximum sheet size is 76 x 110 cm, the minimum sheet size is 32 x 25 cm. The FOLIANT Taurus 760 NG 4x4 machine is double sided thermal industrial laminator, laminating the 115 – 600 gsm paper, with an unique „U“ cross bar for perfect lamination of thin sensitive sheets.
The laminating unit is equipped with an adjustable twin decurl unit:
The roll of a film is mounted on an air shaft that allows very convenient, easy and precise film positioning. The shaft capacity is up to 3000 m of the 24 - 31 microns film. The film holder unit is equipped with a trim slitter and a perforating wheel.
The laminating process is made between pair of laminating rollers for each side - a highly polished chrome roller, and a hard rubber pressure roller. Both chrome rollers are heated with a dry electric system inside, which consists of several rings mounted directly to inside wall of the roller. This ensures that heat transfer is perfect even at maximum speed. Sensitive temperature sensors are also inside the rollers as close to surface as possible. The warming up time is shorter than 10 minutes. The pressure is pneumatically adjustable, with an extra independent control knob for each pressure roller edge.
The machine is fitted with OMRON PLC, which control all machines’ functions. The used PLC system includes many automation items for an easy control of the machine and a reliable lamination. The whole machine is controlled by an interactive easy understandable icon touch screen panel – no language version is needed.

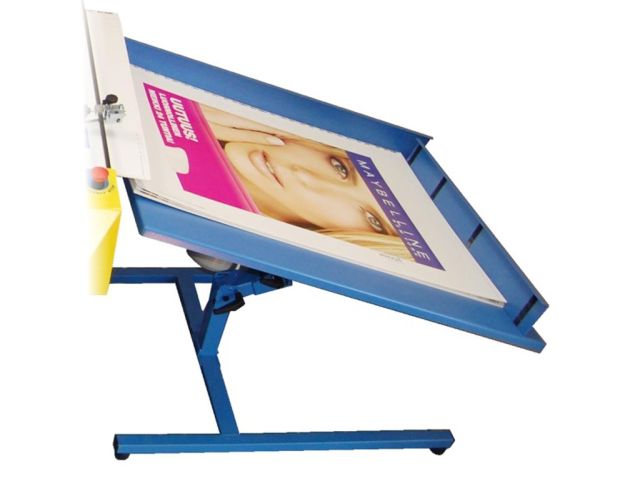

The integrated bump separator (sheeter) is equipped with a pair of fast cycling rollers. The process is controlled from the machine PLC unit. The separated sheets are delivered into a vibrating jogger (optional) or a pallet stacker (optional).
The machine laminates the BOPP films (24 – 42 μm), PET films (20 – 26 μm [single sided, 20-22 μm double sided ]) and Nylon films (24-35 μm; single sided only).
Parameter | Value |
---|---|
Maximal Speed | |
Feeding System | automatic, Suction Feeder Foliant, Feeder's Capacity 40 cm |
Overlaps | Automatic, PLC Controlled, Overlaps Accuracy ± 2 mm |
Separation | Automatic, bump rollers |
Paper Weight | 115–600 g/m² |
Main Roller Pressure System | Pneumatic |
Compressor | External, 150 l / min, 6-8 bar |
Minimal Sheets Size (w×l) | 32×25 cm |
Maximal Sheets Size (w×l) | 76×110 cm |
Maximal Performance | |
Temperature Control | 80–140 °C, Warming Up Time 8 min |
Power Supply | 3 f., 400V AC, 50-60 Hz |
Power | 11300 W |
Mechanical Parameters | Floorspace (w×l) 140×370 cm, Weight: 830 kg |
Modular Stand | |
Pallet Stacker | |
Non-sticky pressure roller | |
Air Shaft | Standard |
