FOLIANT Vega 530A Datasheet (PDF)

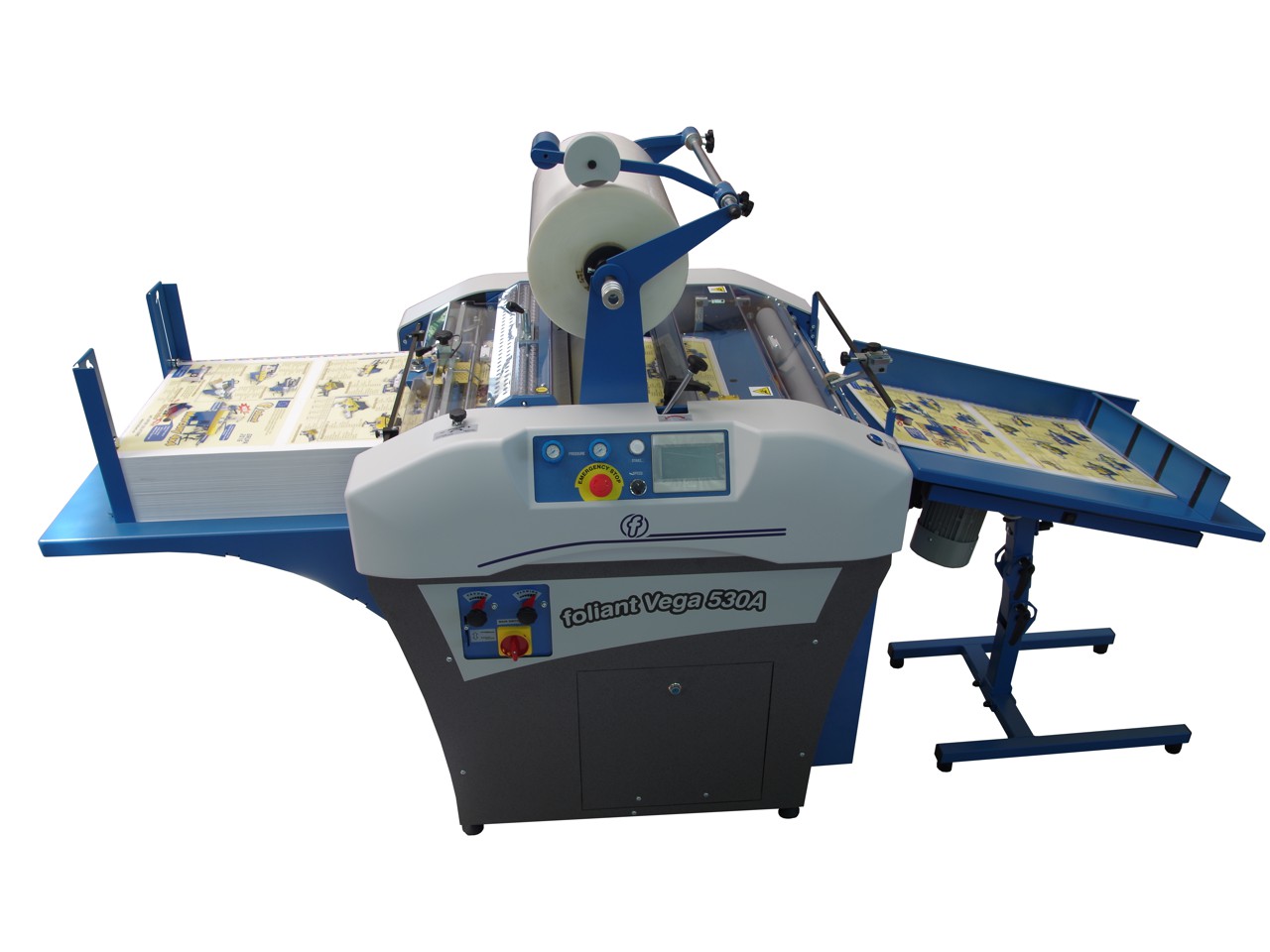

The FOLIANT Vega 530A is a new generation of easy available very compact industrial laminating machines, designed for a heavy duty “In-House” lamination of digital and offset outputs (max. format 53 x 75 cm), with an integrated deep pile vacuum feeder and a high speed bump separator, with non-sticky pressure roller, in-run adjustable twin decurl bar and overlap system. Due to its pneumatic high pressure system (with integrated compressor inside machine frame), format and performance the machine is suitable for all jobs – all kinds of digital printed sheets lamination and high volumes of offset printed sheets size B2+ lamination too. The machine maximum speed is up to 18 m/min., while performance is over 1500 sheets per hour of B2 portrait or over 3000 sheets B3 landscape (blank paper 200 gsm).

Feeder

The FOLIANT Vega 530A is equipped with a rising pile front separation stream feeder and with a vacuum belt head. The Becker vacuum pump is used for sheets front airing. The overlaps are controlled, in an „in-run“ mode. The accuracy is +/- 2 mm under-lap (in a constant speed). The feeder is fitted with a lifting plate and its capacity is a 28 cm pile of paper.

Laminator

The FOLIANT Vega 530A laminator maximum sheet size is 53 x 75 cm. The minimum sheet size is 20 x 30 cm.The FOLIANT Vega 530A machine is a single sided thermal industrial laminator, laminating the 115 – 500 gsm paper. The machine does not need any external source of pressured air for the pneumatic pressure system, because the compressor is built-in inside the machine frame as a standard delivery.
The laminating unit is equipped with an adjustable twin decurl unit:

  • With a decurl blade for offset printed sheets decurling
  • With a decurl roller for digital printed sheets decurling (to prevent scratches on sheets printed on both sides by digital print with sensitive inks).

The roll of a film is mounted on a quick-changed shaft with a film tension control breaker. The shaft capacity is up to 3000 m of the 24 - 31 microns film. The film holder unit is equipped with a in-line trim slitter and a perforating wheel. The laminating process is made between two laminating rollers - a highly polished chrome roller, and a lower hard rubber pressure roller with non-sticky surface. The pressure is pneumatically adjustable. The laminating roller is heated with a dry electric system inside the roller, with a sensitive temperature sensor. The warming up time is shorter than 10 minutes. The whole machine is control with an interactive, easy understandable icon based touch screen and its used control system includes many automation items for an easy control of the machine and a reliable lamination.

Separator

The integrated bump separator (sheeter) is equipped with a pair of fast cycling rollers. The process is controlled from the machine control unit. The separated sheets are delivered into a vibrating jogger (optional) or adjustable reception unit (optional).

Laminating Films

The machine laminates the BOPP films (24 – 42 microns) and nylon films (24 - 35 microns).

Specifications

  • Maximal Speed: single side 18 m/min.
  • Feeding System: automatic, vacuum belt, Feeder's Capacity 28 cm
  • Overlaps: In-Run Screw control, Overlaps Accuracy ± 2 mm
  • Separation: Automatic
  • Paper Weight: 115–500 g/m²
  • Main Roller Pressure System: Pneumatic
  • Compressor: Included
  • Minimal Sheets Size (w×l): 20×30 cm
  • Maximal Sheets Size (w×l): 53×75 cm
  • Maximal Performance: 1500 B2 / hod.
  • Temperature Control: 80–140 °C, Warming Up Time 8 min
  • Power Supply: 230 V AC, 50-60 Hz
  • Power: 3850 W
  • Mechanical Parameters: Floorspace (w×l) 100×260 cm, Weight: 390 kg
  • Layout: Download PDF

Optional

* important - the machine have to be operated either with Jogger or Pallet Stacker
  • Supply Roll Shaft

    Extra Film Supply Roll Shaft for quicker film replacement.
  • Jogger 530

    Adjustable vibrating reception unit for the laminated sheets stocking. Its capacity is limited up to a 10 cm pile of sheets.
  • RU530

    It is a simple adjustable reception unit for stocking the laminated sheets.
  • Foliant Folier

    Winding device that allows use of metalized film (gold, silver, red, etc.) and spot varnish film allpied over print from digital printing machine.
  • Non-sticky pressure roller

    Standard pressure roller is replaced by roller with special non-sticky surface.
